Blackmagic Design UltraStudio 4K Thunderbolt 2
2x 20Gb/s Thunderbolt 2 Ports
DCI/UHD 4K 4:2:2 Up to 30p by 1x 6G-SDI
DCI/UHD 4K 4:2:2 50p-60p by 2x 6G-SDI
DCI/UHD 4K 4:2:2 by HDMI
1080p RGB 4:4:4 by Single-Link 3G-SDI
1080p 4:2:2 by Single-Link HD-SDI
1080p 4:4:4 by Dual-Link HD-SDI
Dual Channel 2D/3D Stereoscopic by SDI
HD Up/Down/Cross Conversion
Description

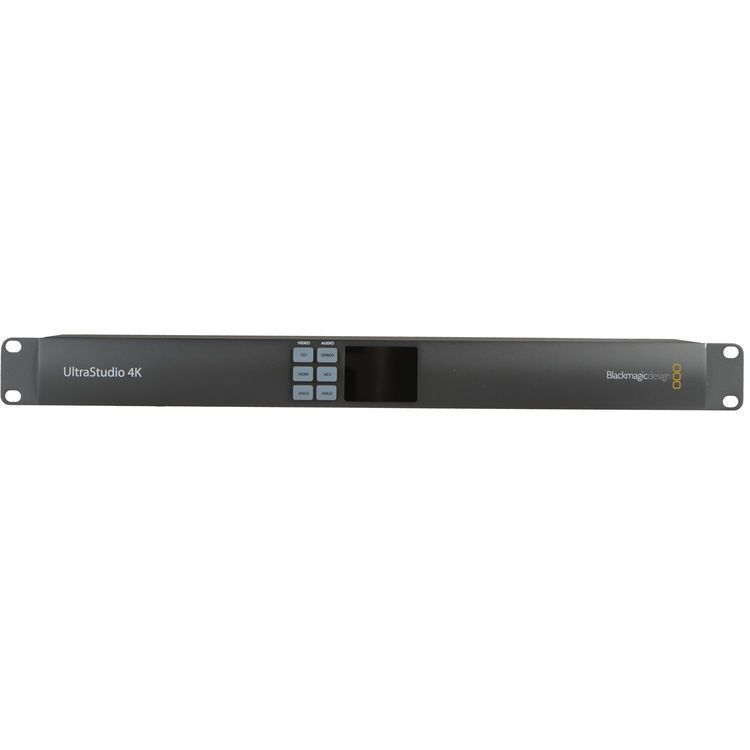

The Blackmagic Design UltraStudio 4K Thunderbolt 2 is an external 1RU/table-top I/O device with two 20Gb/s Thunderbolt ports. It captures DCI 4K 4:2:2 or UHD 4K YUV 4:2:2 by single-link 6G-SDI up to 30p and by dual-link 6G-SDI from 50p to 60p; 1080p RGB 4:4:4 by single-link 3G-SDI; 1080p 4:2:2 by single-link HD-SDI; 1080p 4:4:4 by dual-link HD-SDI; and DCI/UHD 4K 4:2:2 by HDMI. 4K can be input/output compressed and uncompressed. The SDI inputs also support dual-channel 2D/3D stereoscopic workflows. UltraStudio 4K is capable of hardware-based HD down/up/cross conversion.
