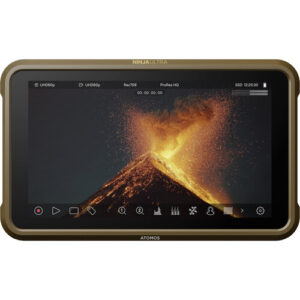

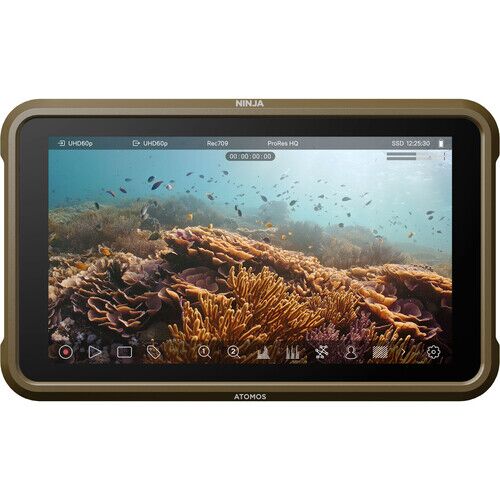

Atomos Ninja 5.2″ 4K HDMI Recording Monitor

Description

Atomos Ninja 5.2″ 4K HDMI Recording Monitor: Elevate Your Content Creation

Overview

Discover the power and versatility of the Atomos Ninja 5.2″ 4K HDMI Recording Monitor. With an updated operating system, HDR monitoring, and RAW recording capabilities, this 5.2″ on-camera monitor and recorder is designed for your next production. Supporting DCI 4K HDMI footage and ProRes RAW up to 6K with compatible cameras, the Ninja is an essential tool for filmmakers and content creators.

AtomOS 11 Operating System

The Ninja features the AtomOS 11 operating system, providing a host of new features and an improved icon interface for intuitive operation. Key functions include Focus Peaking, Zoom, False Color (Atomos and ARRI), EL Zone colorized exposure, Safe Areas, RecordAssist, PlayBackAssist, SegmentPro, and Cine Guides. The AtomHDR processing engine allows real-time Log to PQ/HLG previewing, ensuring your footage is accurately monitored.

5.2″ Touchscreen Display

Experience high-quality monitoring with the Ninja’s 5.2″ IPS touchscreen, offering a 1920 x 1080 resolution and 1000 cd/m² brightness for clear viewing in broad daylight. With 10-bit color processing, Rec.709 color gamut, and Calibrite ColorChecker Display Pro/Plus calibration support, you get precise and vibrant color reproduction.

Comprehensive Color Support

The Ninja supports various log formats from leading camera brands including Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon. You can also upload custom 3D LUTs and output HDR conversion to Log, HLG, PQ, or Dolby Vision formats for versatile color grading options.

HDMI Interface and ProRes RAW Recording

Featuring HDMI input and output ports, the Ninja supports up to DCI 4K video at 60 fps for monitoring, recording, and playback. It can handle 3.5K RAW at 60 fps with select cameras, and over 55 cameras support RAW recording over HDMI up to 6K at 30 fps. This makes it an excellent choice for high-quality video production.

Record 4K HDR Gaming

For gamers, the Ninja can be configured as a standalone system for capturing UHD 4K, HDR, and high frame rate gameplay. Record, monitor, and review your gameplay instantly for seamless posting to platforms like YouTube.

Optional Atomos CONNECT Module

Expand your capabilities with the optional Atomos CONNECT module, which offers cloud workflow access like C2C, Atomos Edit, and Atomos RemoteView via Atomos Cloud Studio. This module adds 12G-SDI connectivity, AirGlu wireless timecode and control, Wi-Fi 6, and GigE Ethernet, enabling live streaming and custom RTMP/S destinations. It also allows HDMI to SDI and SDI to HDMI conversion.

AtomX Cast

Transform your Ninja into a compact production studio with the AtomX CAST. This component enables advanced multi-input switching from four 1080p HDMI sources, graphic overlays, and a USB UVC webcam output for enhanced web conferencing and live streaming.

SSD Recording

The Ninja is compatible with the Atomos Master Caddy II and Master Caddy III 2.5″ hard drive units, supporting direct recording to the drives. Compact AtomX SSDmini drives and CFAST II cards can also be used with a separately available adapter.

Power Options

Power your Ninja with an L-series battery plate supporting NP-F L-series batteries, or use the USB-C port for 30W PD power delivery. The included dummy eliminator allows for DC power source connection.

Control Options

Enjoy intuitive control with multifunction buttons and a touchscreen interface. The Ninja supports auto HDMI camera trigger for Canon and Sony cameras using Atomos Open Standard. Unlock Bluetooth and RF-driven remote control with the optional CONNECT module, and access LANC control and calibration with a separately available USB-C to serial connection cable.

Discover the Atomos Ninja at Golden Camera

The Atomos Ninja 5.2″ 4K HDMI Recording Monitor is an indispensable tool for any filmmaker or content creator. With its advanced features, versatile connectivity, and superior monitoring capabilities, it’s designed to elevate your production quality. Visit Golden Camera today to get your hands on this cutting-edge equipment!
