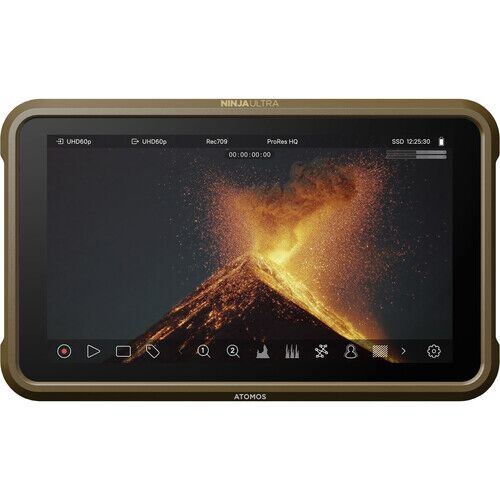

Atomos Ninja Ultra 5.2″ 4K HDMI Recording Monitor

Description

Atomos Ninja Ultra 5.2″ 4K HDMI Recording Monitor: Revolutionize Your Content Creation

Overview

Step up your filmmaking game with the Atomos Ninja Ultra 5.2″ 4K HDMI Recording Monitor. Equipped with an updated operating system, HDR monitoring, and advanced RAW recording capabilities, this 5.2″ on-camera monitor and recorder is perfect for your next production. Supporting DCI 4K HDMI footage and ProRes RAW recording up to 8K with compatible cameras, the Ninja Ultra seamlessly integrates with your existing equipment.

AtomOS 11 Operating System

The AtomOS 11 operating system, designed for the Ninja Ultra, brings a wealth of new features and an improved icon interface for a more intuitive user experience. Enjoy advanced functions like Focus Peaking, Zoom, Atomos and ARRI False Color, EL Zone colorized exposure, Safe Areas, RecordAssist, PlayBackAssist, SegmentPro, and Cine Guides. The AtomHDR processing engine allows real-time Log to PQ/HLG previewing for accurate footage monitoring.

5.2″ Touchscreen Display

The Ninja Ultra features a 5.2″ IPS touchscreen with a 1920 x 1080 resolution and 1000 cd/m² brightness, ensuring clear visibility even in bright daylight. With 10-bit color processing, a Rec.709 color gamut, and support for Calibrite ColorChecker Display Pro/Plus calibration, you get color-accurate, high-quality monitoring of your visuals.

Comprehensive Color Support

The Ninja Ultra supports a variety of log formats from major camera brands including Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon. You can upload custom 3D LUTs and output HDR conversion to Log, HLG, PQ, or Dolby Vision formats, offering flexible color grading options.

HDMI Interface and ProRes RAW Recording

With HDMI input and output ports, the Ninja Ultra supports up to DCI 4K video at 60 fps for monitoring, recording, and playback. It also handles 3.5K RAW at 60 fps with select cameras. Over 55 cameras support RAW recording over HDMI with the Ninja Ultra, up to 8K at 30 fps, making it ideal for high-resolution video production.

Optional Atomos CONNECT Module

Expand your Ninja Ultra’s capabilities with the optional Atomos CONNECT module. This module provides access to cloud workflows such as C2C, Atomos Edit, and Atomos RemoteView via Atomos Cloud Studio. It adds 12G-SDI connectivity, AirGlu wireless timecode and control, Wi-Fi 6, and GigE Ethernet, enabling live streaming and custom RTMP/S destinations. Exclusive to the Ultra, it unlocks SDICine, enhanced metadata support, RAW recording via SDI, dual 4K60 ProRes RAW and 1080p60 H.265 dual recording codecs, and 4K C2C mode for superior uploads. The CONNECT module also supports HDMI to SDI and SDI to HDMI conversion.

AtomX Cast

Transform your Ninja Ultra into a full-featured production studio with the AtomX CAST. This component allows advanced multi-input switching from four 1080p HDMI sources, graphic overlays, and USB UVC webcam output for enhanced web conferencing and live streaming.

SSD Recording

The Ninja Ultra is compatible with Atomos Master Caddy II and Master Caddy III 2.5″ hard drive units, supporting direct recording. You can also use compact AtomX SSDmini drives and CFAST II cards with a separately available adapter.

Power Options

Power your Ninja Ultra with an L-series battery plate supporting NP-F L-series batteries. A USB-C port supports 30W PD power delivery with the included cable. Additionally, the included dummy eliminator allows you to power the monitor via DC sources.

Control Options

The Ninja Ultra offers intuitive control through multifunction buttons and a touchscreen interface. It supports auto HDMI camera trigger for Canon and Sony cameras using Atomos Open Standard. With the optional CONNECT module, you can unlock Bluetooth and RF-driven remote control. LANC control and calibration are accessible using a separately available USB-C to serial connection cable.

Discover the Atomos Ninja Ultra at Golden Camera

Upgrade your production capabilities with the Atomos Ninja Ultra 5.2″ 4K HDMI Recording Monitor. Its advanced features, versatile connectivity, and superior monitoring options make it an essential tool for filmmakers and content creators. Visit Golden Camera today to elevate your content creation experience!
