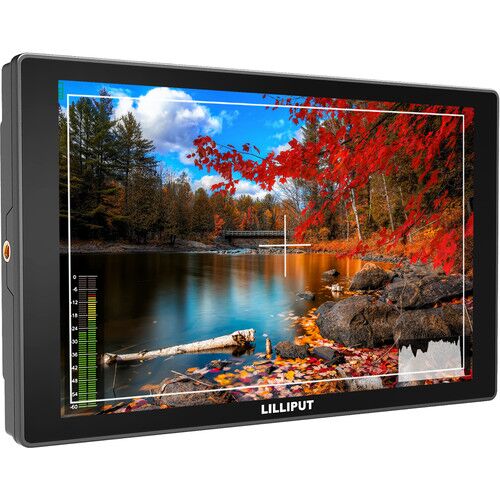

The Lilliput A11 4K HDMI & 3G-SDI Monitor from Lilliput is a field monitor designed for on-camera use with video, DSLR, and mirrorless cameras. This Full HD panel monitor features both 4K HDMI input/output, 3G/HD/SD-SDI input and output, a VGA input, 1000:1 contrast, and 320 cd/m² brightness.
Integrated tools include focus peaking, histogram, selectable aspect ratios, false color, zoom, image flip, and an audio level meter. These display tools assist users in accurately monitoring their video when recording or playing back footage in post-production. Two user-assignable buttons enable you to quickly access your most-used tools.
Power the A11 monitor using one Sony L-series type battery and the included plate, or use a separately available V-mount or Gold mount battery plate with your compatible battery. Mounting options include a 1/4″-20 thread for use with a support arm and a 75 x 75mm VESA pattern.
Crisp 10.1″ Display
- 10.1″ LCD panel
- 320 cd/m² brightness
- 1000:1 contrast
- Rich 8-bit color
- 175° horizontal and vertical viewing angle
3G-SDI & 4K HDMI Input/Output
- 4K30 HDMI input/output
- 3G-SDI input/output
- VGA input
Tools
- Two user-assignable buttons
- Focus peaking
- Selectable aspect ratios
- Exposure control
- False color function
- Histogram
- Zoom function
- Audio meter
Power & Mounting
- Includes one Sony L-series type battery plate
- Can be used with separate V-mount or Gold mount plates
- 75 x 75mm VESA mounting pattern
- 1/4″-20 mounting thread
- 7 to 24V DC input range
