Sony ECM-W5 2-Person Wireless Microphone System

Sony ECM-W5 Wireless Microphone System

Product Overview

The Sony ECM-W5 is a two-person wireless microphone system designed for interviews, video production, live streaming, vlogging, and professional content creation. It is primarily designed for Sony cameras featuring a compatible Multi Interface (MI) Shoe with a digital audio interface.

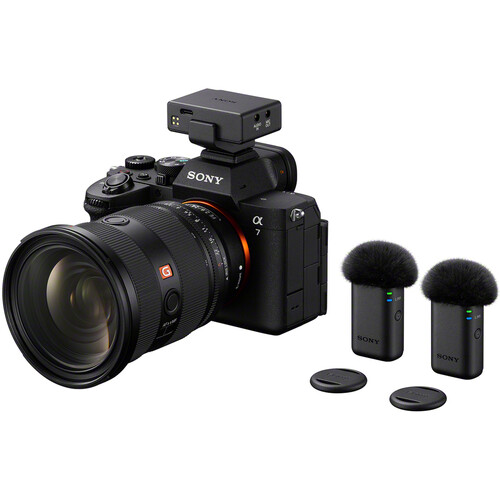

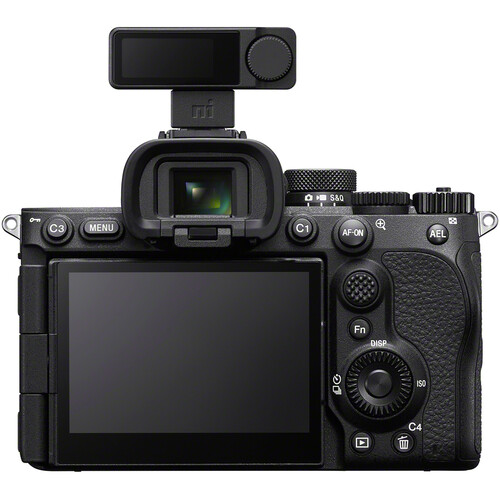

The receiver connects directly to a compatible Sony camera’s MI Shoe for cable-free digital audio recording and camera-supplied power. Supported cameras can record 32-bit float audio directly into the video file, simplifying editing and file management.

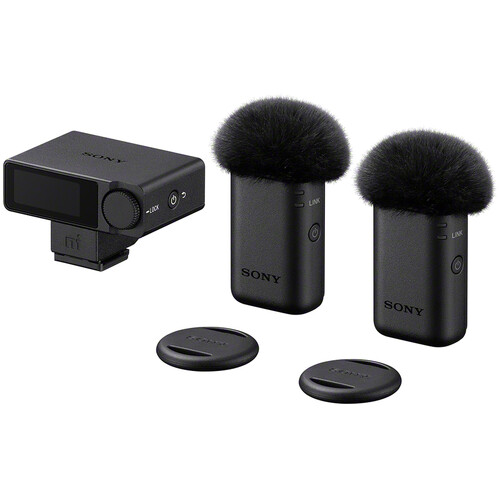

The system includes two microphone transmitters, a receiver, a charging case, and a USB-C adapter. It also offers onboard backup recording, wireless headphone monitoring, timecode synchronization, and compatibility with supported computers and mobile devices.

Key Features

Digital Audio Integration with Sony Cameras

The Sony ECM-W5 connects through a compatible Sony camera’s Multi Interface Shoe to deliver high-quality digital audio without requiring a separate receiver cable.

• Digital audio recording through a compatible Sony MI Shoe
• Audio support up to 96 kHz / 24-bit or 48 kHz / 32-bit float, depending on the compatible setup
• Supported cameras can record 32-bit float audio directly into the video file
• Improved flexibility when adjusting quiet voices and sudden audio peaks during post-production
• Automatic input gain adjustment to help prevent clipping and distortion
• Manual input gain adjustment from -12 to +12 dB
• Selectable noise-cut and low-cut functions

Reliable Wireless Audio and Flexible Monitoring

The ECM-W5 provides low-latency wireless audio transmission over distances of up to approximately 1,640 feet (500 metres) in line-of-sight conditions.

• Stable wireless transmission for interviews and video production
• Bluetooth hopping technology to help reduce signal dropouts
• Wireless monitoring with compatible Sony Bluetooth LE Audio headphones
• Support for capturing audio from compatible Sony wireless headphones
• Binaural recording support with a compatible microphone for spatially immersive ambient sound

Onboard Backup Recording and Four-Channel Expansion

Each microphone transmitter features 64GB of built-in storage for independent recording and audio backup. This helps protect recordings and provides additional flexibility during demanding production sessions.

• 64GB onboard storage in each transmitter
• Independent recording and onboard audio backup
• Compatible Sony cameras can support simultaneous WAV recording
• Transfer recordings to a PC using USB-C
• Export recordings directly from the microphone or through the charging case
• Add up to two separately available ECM-W5T transmitters for four-speaker recording on compatible cameras
• Recording start/stop control on the microphone

Lavalier Microphone Inputs and Flexible Mounting

Both the transmitter and receiver feature a mono 3.5mm external microphone input, allowing compatible lavalier microphones to be connected for discreet voice recording.

• Mono 3.5mm external microphone input on the transmitter and receiver
• Compatible with optional lavalier microphones such as the Sony ECM-L1
• Locking TRS connector on the transmitter to help prevent accidental disconnection
• Clip and magnetic attachment options
• Compact, discreet design for on-camera use
• Upright form factor suitable for handheld reporting and live streaming
• Compatible with supported smartphones and PCs
• Included USB-C adapter for compatible USB Audio Class 2.0 devices

Timecode Synchronization and Advanced Controls

The Sony ECM-W5 supports timecode workflows to help synchronize footage during post-production, making it suitable for multi-camera video production.

• Timecode output for post-production synchronization
• USB SYNC mode for compatible Sony cameras
• Timecode information can be stored as video metadata on supported setups
• High-contrast AMOLED touchscreen on the receiver
• Control wheel and button for adjusting settings
• Automatic standby when the charging case is opened
• Configured camera-linked power through the compatible MI Shoe
• LED indicators for power, recording, and connection status

Extended Battery Life and Charging

The ECM-W5 is designed for extended recording sessions, with rechargeable batteries in both the microphones and standalone receiver.

• Up to 7 hours of continuous operation per full charge for the microphones and standalone receiver
• Up to 11 hours of total use when the receiver is powered through a compatible camera and microphone charging is managed through the case
• Camera-supplied power through a compatible MI Shoe

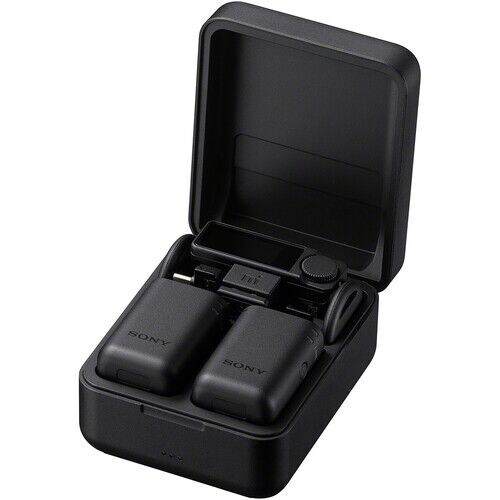

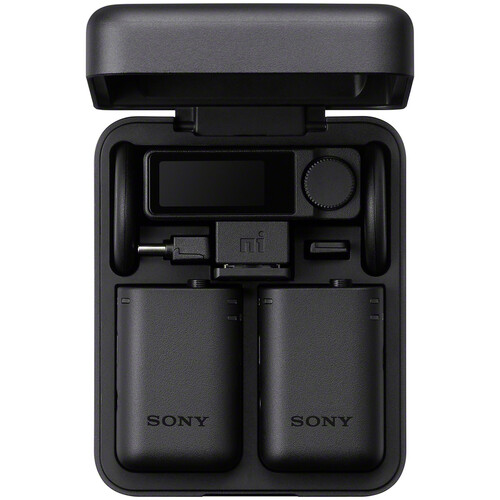

• Charging case for convenient storage and charging

Environmentally Conscious Design

More than 41% of the main unit’s plastic weight is made from recycled materials, supporting Sony’s efforts to reduce the environmental impact of its products.

Sony ECM-W5 Specifications

Specification	Details
Product Type	Wireless Microphone System
Microphone Configuration	2 Transmitters + 1 Receiver
Camera Connection	Compatible Sony Multi Interface Shoe
Digital Audio	Up to 96 kHz / 24-bit or 48 kHz / 32-bit Float, depending on setup
Onboard Storage	64GB per Transmitter
Wireless Range	Up to 1,640 ft / 500 m, line of sight
External Microphone Input	Mono 3.5mm
Manual Input Gain	-12 to +12 dB
Receiver Display	AMOLED Touchscreen
Transmitter Battery Life	Up to 7 Hours
Standalone Receiver Battery Life	Up to 7 Hours
Extended Operating Time	Up to 11 Hours with the supported camera-powered configuration
Computer and Mobile Connectivity	USB-C with compatible devices

What’s Included

• 2 x Sony Microphone Transmitters
• 1 x Sony Receiver
• 1 x Charging Case
• 1 x USB-C Adapter

Ideal For

• Interviews and Two-Person Conversations
• Professional Video Production
• Vlogging and Content Creation
• Live Streaming
• Documentary Filmmaking
• Multi-Camera Productions
• Journalism and Field Reporting
• Podcasts and Social Media Videos

Why Choose Sony ECM-W5?

The Sony ECM-W5 Wireless Microphone System combines direct digital audio integration with compatible Sony cameras, onboard backup recording, wireless monitoring, timecode support, and flexible connectivity. Its two-person microphone setup and expandable recording options make it a versatile choice for creators and professionals who need dependable wireless audio for video production.
